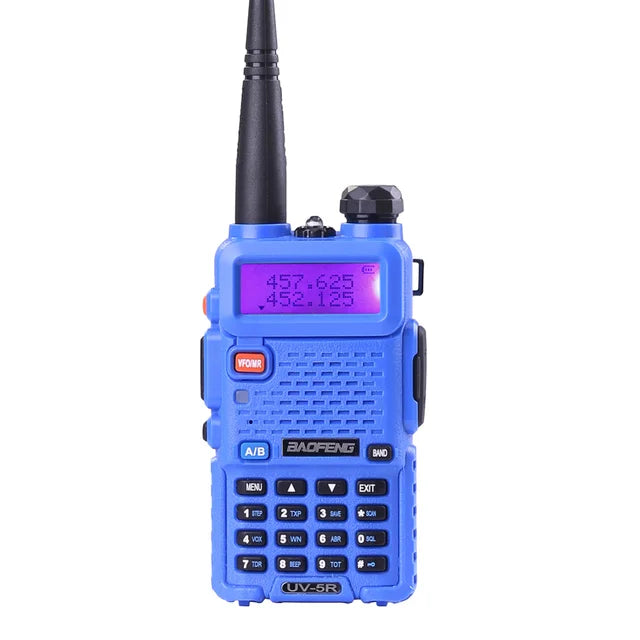

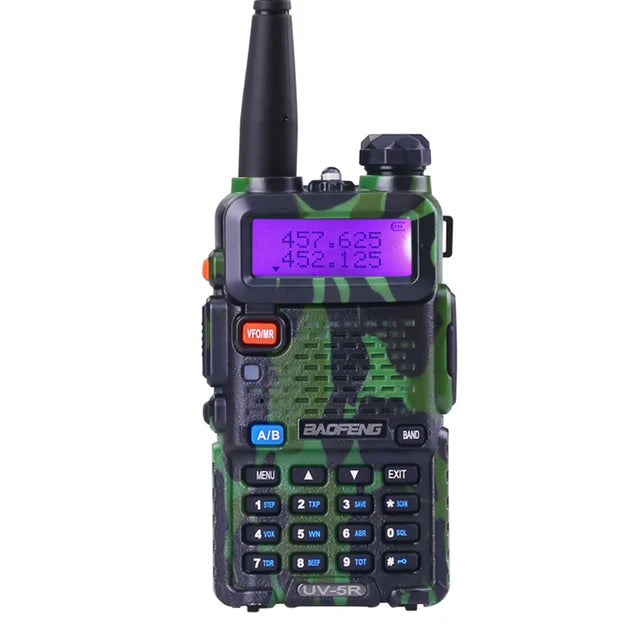

BaoFeng UV-5R Walkie Talkie Professional CB Radio Baofeng UV5R Transceiver 128CH 5W VHF&UHF Handheld UV 5R For Hunting Radio
BaoFeng UV-5R Walkie Talkie Professional CB Radio Baofeng UV5R Transceiver 128CH 5W VHF&UHF Handheld UV 5R For Hunting Radio
Including all

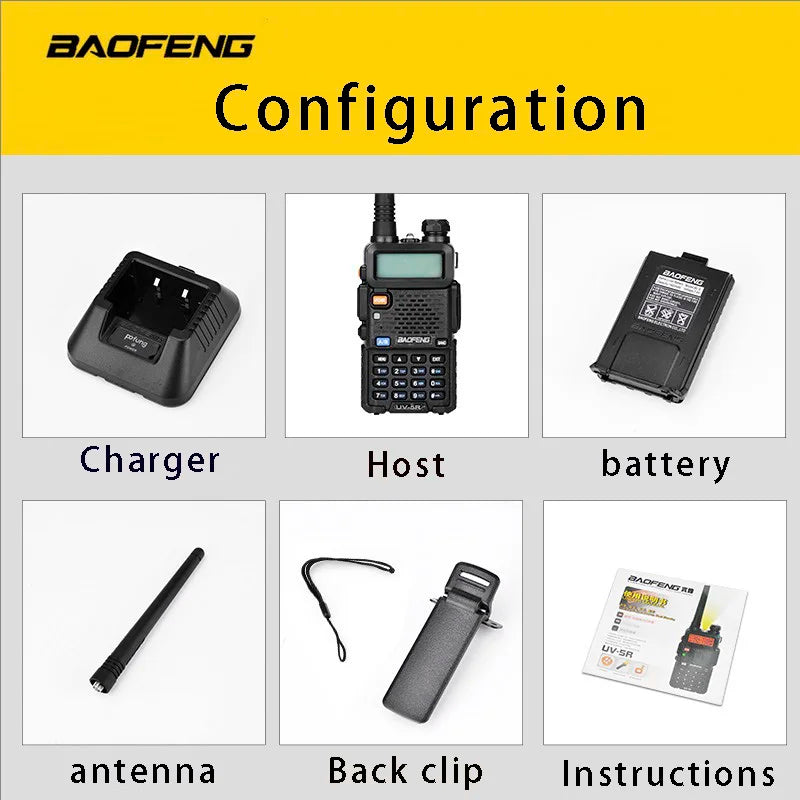

PACKAGE of unit
1 x UV-5R (VHF136-174 & UHF 400-520Mhz)
1 x 7.4V 1800mah Li-ion Battery Pack

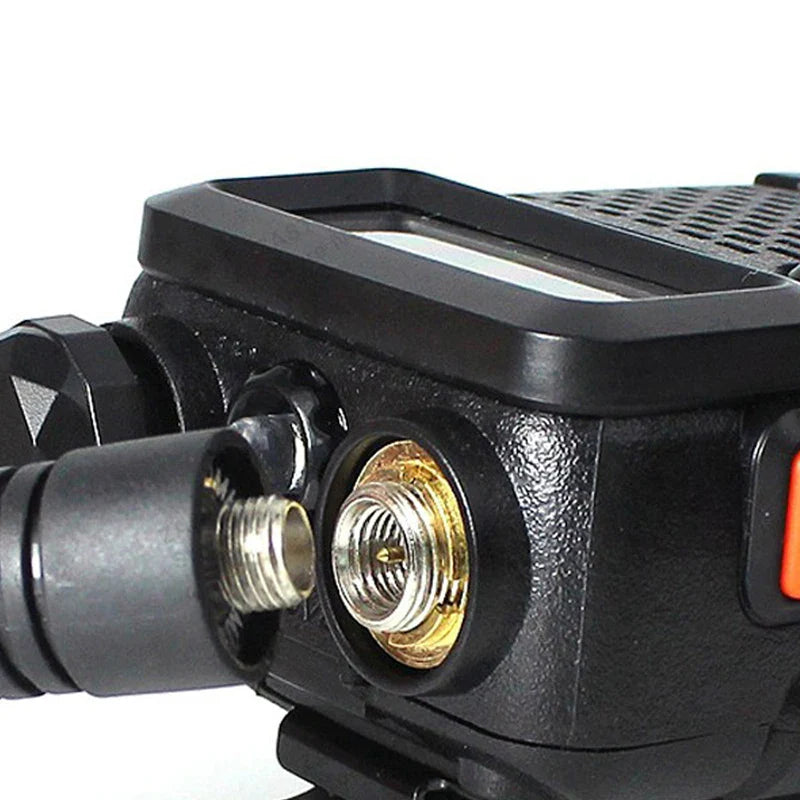

1 x dual band Antenna
1 x Belt Clip

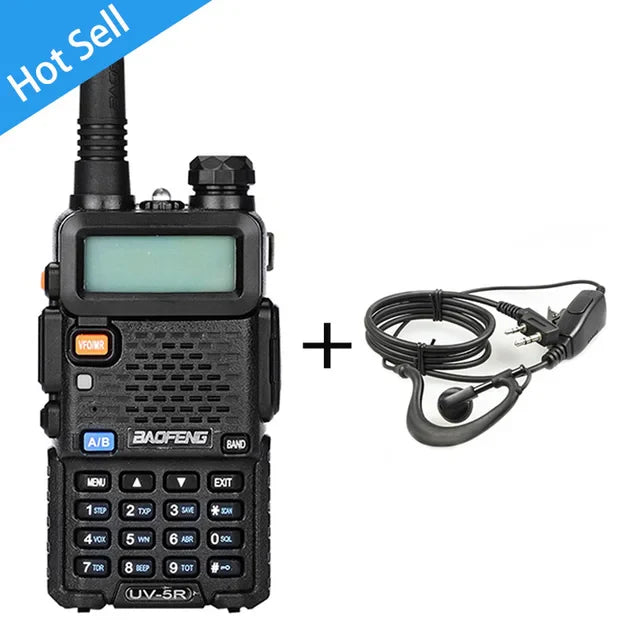

1 X ear hook earphone
1 x ENG Manual
1 x Desktop Charger ( 100V ~ 240V US/EU/UK/AU plug )

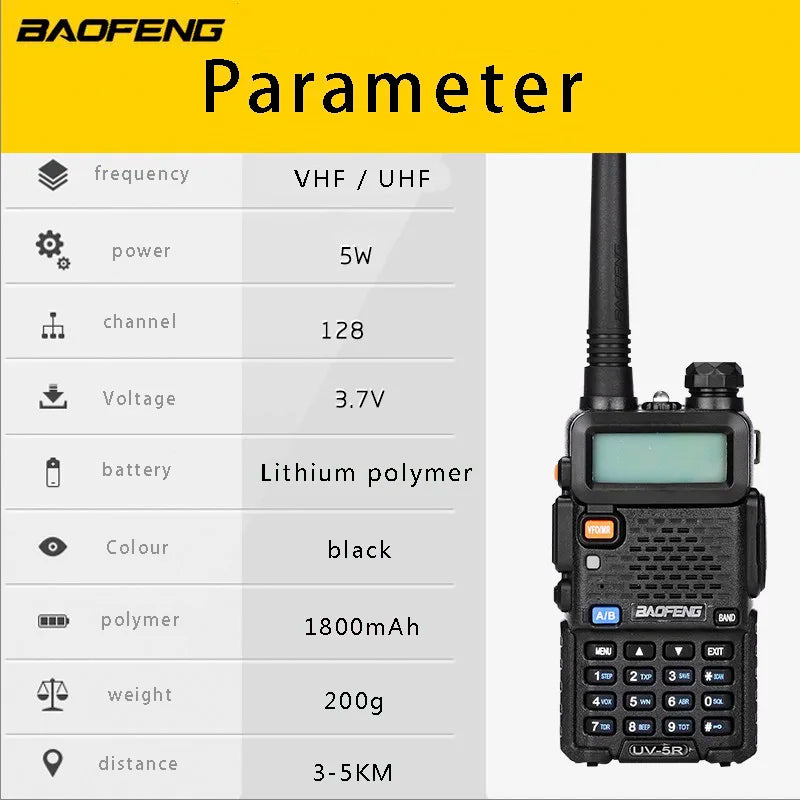

Technical Parameters
GENERAL | |
|
Frequency range |
65-108Mhz(only for FM) VHF:136-174Mhz(Rx/Tx) UHF:400-520(Rx/Tx) |
Memory channels |
Up to 128 channels |
Frequency stability |
2.5ppm |
Frequency step |
2.5kHz/5kHz/6.25kHz/10kHz/12.5kHz/25kHz |
|
|
Supply voltage |
Rechargeable Lithium-Ion mAh7.4V/1800 |
|
|
Mode of operation |
Simplex or semi-duplex |
Duty cycle |
03/03/54 min.(Rx/Tx/Standby) |
Dimensions |
58mm*110mm*32mm |
Weight |
130g(approximate) |
TRANSMITTER | |
RF power |
4W/1W |
Type of modulation |
FM |
|
|
Spurious emissions |
<-60dB |
RECEIVER | |
Receiver sensitivity |
0.2μV(at 12dB SINAD) |
Intermodulation |
60dB |
Audio output |
1000mW |
Adjacent channel selectivity |
65/60dB |
Note:All specification shown are subject to change without notice | |
Features/Functions
Dual-band handheld transceiver with display function menu on the display "LED" |
Commercial FM radio receiver (65MHz-108MHz) |
Built-in LED flashlight |
DTMF encoded |
Built-in RX CTCSS/DCS scan |
Function VOX |
Alarm function |
Broadband/narrowband selectable |
Function beep on the keyboard |
Dual Watch/dual Reception |
Crossband reception/transmission |
Function OFFSET |
Tone end of transmission |
Battery saving function SAVE |
Programmable by PC |
Built-in key lock |
